Oil Country Tubular Goods

Tubing and Casing Coupling

Product: Casing and Tubing Coupling, Casing Coupling, Tubing Coupling
Application:  Used for connect 2 joints of tubing or casing
Size:Tubing Coupling : 1.9” –  4-1/2”
Casing  Couping :  4-1/2” – 13-3/8”
Pipe Standard:  API 5CT and 5B PSL1/PSL2  J55,K55,N80-1,N80-Q,
 API 5CT and 5B L80-1,C90, C95,T95, P110, Q125
Surface:Whole Phosphating or inside phosphating and outside coating
Thread: NUE, EUE, VAM, STC, LTC, BTC, XC, VAM TOP, NEW VAM,HYDRILL CS
Special Service Sweet Service, Sour Service, Anti-H2S, NACE MR0175/ISO15156
Packing: By carton, wooden case, wooden pallet or requirement of customer
Previous
Next

Description

Tubing Coupling
Tubing coupling specificationsOD mm Min length mmWeight kg
NUENNUENNUEN
1 8/955.8863.5093.2598.420.560.84
2 3/873.0277.80107.95123.821.281.55
2 7/888.9093.17130.18133.352.342.40
3 1/2107.95114.30142.88146.053.714.10
4.00120.65127.00146.05152.404.354.82
4 1/2132.08141.30155.58158.754.896.05



Casing Coupling
SizeThread TypeO.D & Length (mm)Weight for each (kgs)
4-1/2″STC127.00 * 158.755.23
LTC127.00 * 177.804.15
BTC127.00 * 225.424.55
5″STC141.30 * 165.104.66
LTC141.30 * 196.855.75
BTC141.30 * 231.785.85
5-1/2″STC153.67 * 171.455.23
LTC153.67 * 203.206.42
BTC153.67 * 234.956.36
6-5/8″STC187.71 * 184.159.12
LTC187.71 * 222.2511.34
BTC187.71 * 244.4811.01
7″STC194.46 * 184.158.39
LTC194.46 * 228.6010.83
BTC194.46 * 254.0010.54
7-5/8″STC215.90 * 190.5012.30
LTC215.90 * 234.9515.63
BTC215.90 * 263.5215.82
8-5/8″STC244.48 * 196.8516.23
LTC244.48 * 254.0021.67
BTC244.48 * 269.8820.86
9-5/8″STC269.88 * 196.8518.03
LTC269.88 * 266.7025.45
BTC269.88 * 269.8823.16
10-3/4″STC298.45 * 203.2020.78
BTC298.45 * 269.8825.74
11-3/4″STC323.85 * 203.2022.64
BTC323.85 * 269.8828.03
13-3/8″STC365.12 * 203.2025.66
BTC365.12 * 269.8831.77
16″STC431.80 * 228.634.91
BTC431.80 * 269.8840.28
18-5/8″STC508.00*228.6051.01
BTC508.00*269.8862.68
20″STC533.40*228.643.42
LTC533.4*292.1057.04
BTC533.40*269.8850.10

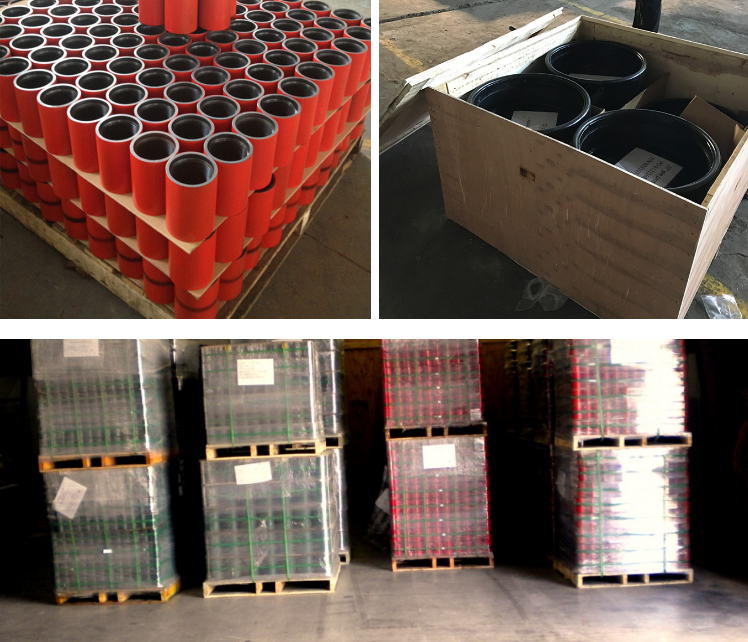

Packing & Delivery

Packing Details  : Packed on wooden pallet

Delivery Details : 3-30 days on receipt of prepayment(order confirmed)
